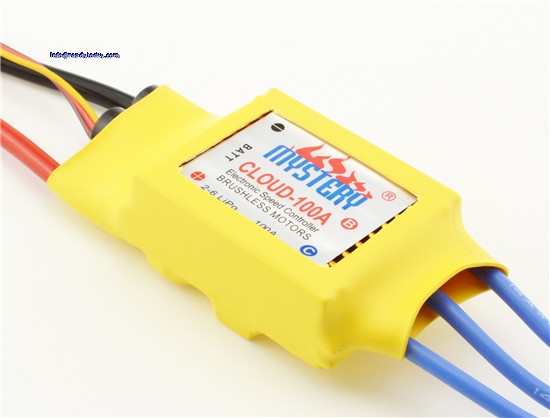

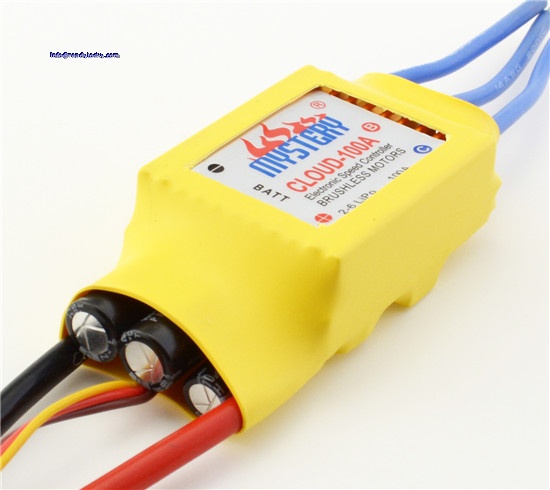

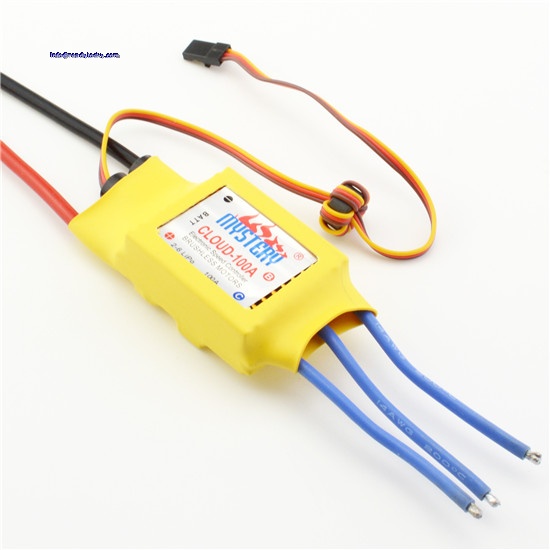

Mystery Cloud 2-6S 100A Brushless Electronic RC Speed Control ESC
$39.99
Description
Here you have a "BRAND NEW Mystery Cloud 2-6S 100A Brushless Electronic RC Speed Controller !!
Here is an opportunity to pick up a Great ESC as a replacement or for that new project at a reasonable price !!
These controllers retail for $75.00 and more !!
Here is a chance to get one at a reasonable cost.
This is a Limited Time Offer While Supplies Last, so act now or loose out !!
You can't go wrong on this one when it is NEW, and if you buy now you will receive it in just a few days !!
OK, so Thank You For Looking and Please check my store for more "BUY IT NOW OFFERS" For More. ESC's, Batteries, Parts, Heli's, Planes, Upgrades, Accessories And Many More GREAT DEALS !! Thank You: Ted.
PS. International Bidders Welcome !! Please E-Mail Ahead For Shipping Estimate.
Thank You: Ted..
Description:
No:CLOUD-100A
Cont Current:100A
Burst Current (>10s):110A
Cells:2-6S 5-18NC
BEC:NO
Size(mm):62.3*33.5*13
Weight(g):93g
PWM:Programmable - 8/16K
Features:
Constant current 100A Max 110A <60s
High Voltage Li-Poly 6-10 cells, Ni-MH 18-30 cells
Low resistant 0.0010 ohms;
Dynamic braking
BEC: OPTO
Auto shut down when lose signal
Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V Nimh
User programming options:
Battery Setting
Throttle Range
Brake Setting 4 options:
Direction and Cutoff Type
Timing Mode Setting: 1º /7º /15º/30º
PWM Setting: 8K/16K
Important Note: this ESC is Opto, without BEC supplying power to your Receiver, you need extra power source for your receiver. You can use a UBEC, a voltage regulator, or extra batteries as the power source for your receiver. If you hear the music tone repeat again and again for more than 3 times, you may need to check your power source to the receiver.
