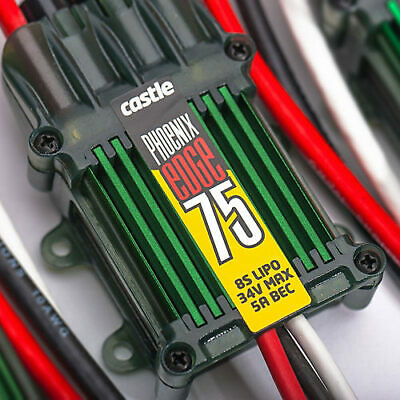

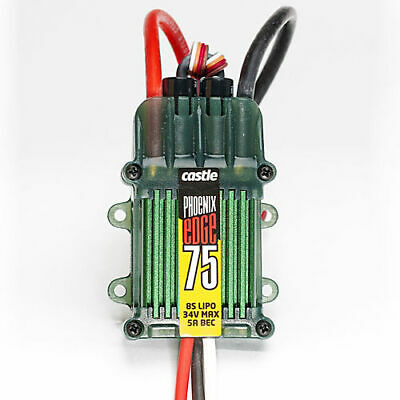

Here you have a "BRAND NEW Castle Creations CSE010010100 Phoenix Edge 75 34V 75Amp Brushless Electronic Speed Controller !!

Here is an opportunity to pick up a Great ESC as a replacement or for that new project at a reasonable price !!

These controllers retail for $150.00 and more !!

Here is a chance to get one at a reasonable cost.

This is a Limited Time Offer While Supplies Last, so act now or loose out !!

You can't go wrong on this one when it is NEW, and if you buy now you will receive it in just a few days !!

OK, so Thank You For Looking and Please check my store for more "BUY IT NOW OFFERS" For More. ESC's, Batteries, Parts, Heli's, Planes, Upgrades, Accessories And Many More GREAT DEALS !! Thank You: Ted.

PS. International Bidders Welcome !! Please E-Mail Ahead For Shipping Estimate.

Thank You: Ted..

Get the Edge over your competition.

With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.

The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter (free with included coupon).

Same Incredible Price
The Phoenix Edge controllers deliver all of this while retaining the same astonishing prices as their predecessors
Phoenix Edge 75 Specs
Applications
Helis: 500 class
Fixed wing: .40 - .52
Technical Specs
Input voltage: MIN: 2S LiPo MAX: 8S LiPo
Max continuous amperage at full throttle: 75 amps*
BEC voltage (voltage regulator for powering radio and sevos): User selectable choice from 5 to 8.4 volt output
BEC output amperage: 5 amp peak**
Size and Weight
Width: 2.0" (50.8mm)
Length: 2.8" (71.9mm)
Height: 0.9" (23.2mm)
Weight w/wires: 4.0 oz (113.4g)
Weight w/o wires: 2.5 oz (70.9g)
Miscellaneous
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software.
Castle Field Link Programming Card (sold separately) compatible for select functions.
Connectors: Battery and motor connectors sold separately
Tools needed for installation: Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.

*RC HOBBY APPLICATION RATING: 75 amps for the duration of a single 5,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.

**Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Your setup may vary. Always confirm servo current draw before the first flight of the model.
